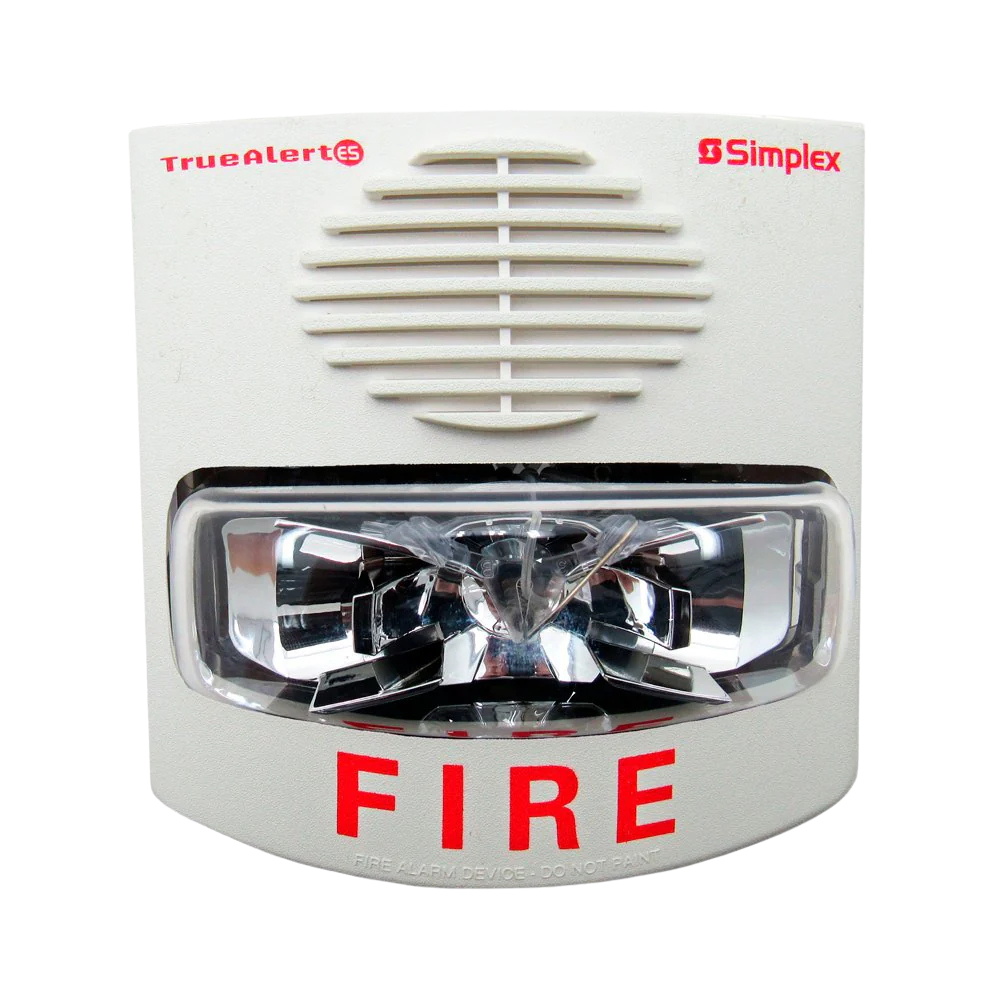

Simplex 49AV-WWF Wall Horn Strobe - White

Simplex 49AV-WWF Wall White Horn Strobe is individually addressed audible/ visible notification appliances that receive power, supervision; as well as control signals from a Simplex fire alarm control panel.

The Simplex 49AV-WWF Strobe Application ReferenceProper selection of visible notification is dependent on occupancy, location, local codes, together with proper applications of: the National Fire Alarm Code.

In fact, individually addressed and controlled multi-candela TrueAlert ES A/V (audible/visible) notification appliances provide:

• Multi-candela xenon strobe with synchronized 1 Hz flash rate and with intensity programmable from the control panel or jumper selected as 15, 30, 75, 110, 135, or 185 cd
• Advanced addressable notification controlled by IDNAC SLCs providing regulated 29 VDC allowing strobes to operate with lower current even under battery backup
• Wiring supervision to each appliance allowing “T-tapped” connections for Class B circuits to simplify wiring
• Self-Test Mode allows on-board sensors to detect the strobe as well as horn output and then report their status to the control panel
• TrueAlert Device Reports Reports are available at the control panel detailing appliance point ID, custom label, type, together with candela setting
• Magnet Test diagnostics Magnet Test diagnostics assist checkout and testing of appliances and wiring.

LED Indicator and Magnet Test:

• Appliance LED can be selected to display each polling cycle to indicate appliance supervision

Mechanical design features:

• Rugged, high impact, flame retardant thermoplastic housing in red with white letters or white with red letters, with clear lens
• Separate covers are available to change application type on-site or for replacement

Audible notification appliance (horn):

• Harmonically rich output sound for either coded or steady operation
• Selectable March Time rates of 20, 60, or 120 beats per minute
