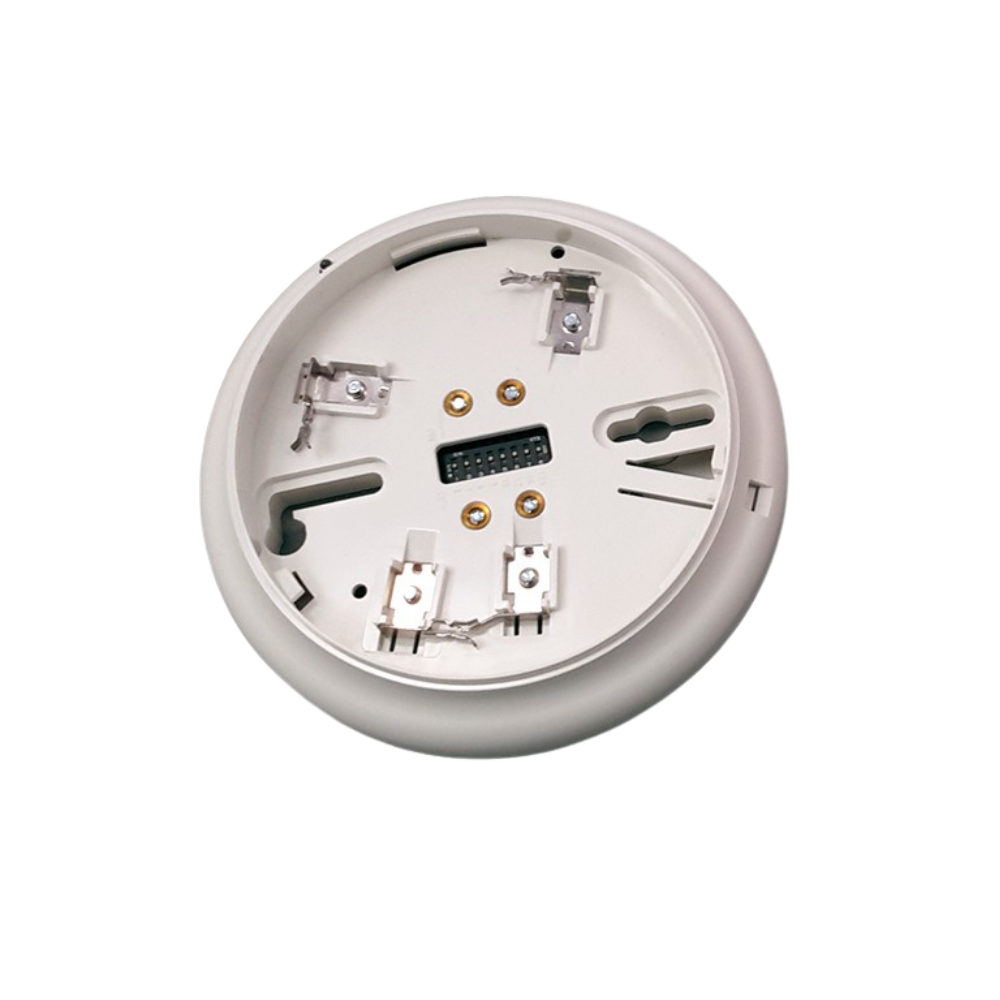

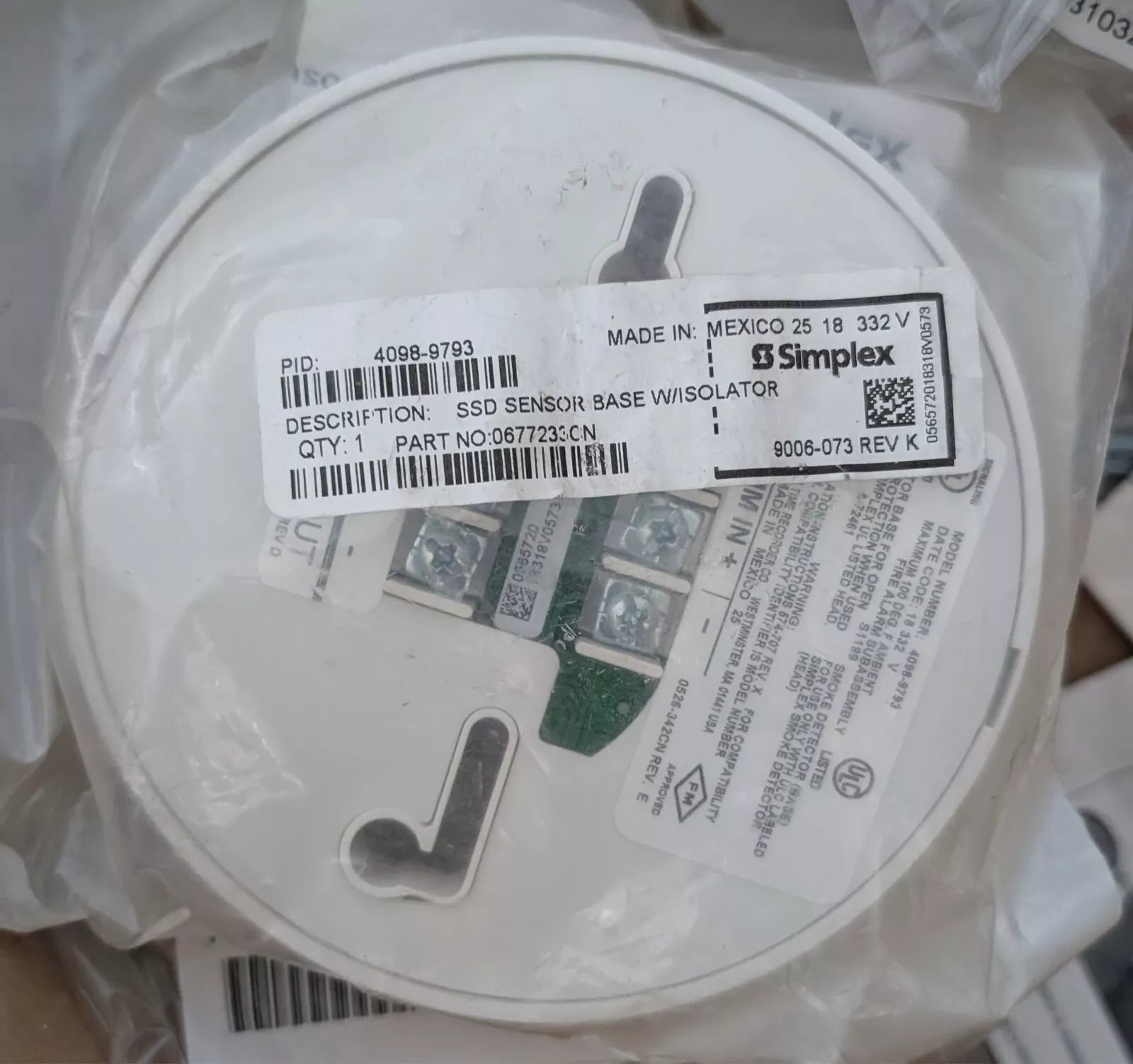

Simplex 4098-9793 SSD Sensor Base with Isolator
$43.99
Tax included.
Just 3 left. Order soon!
FREE SHIPPING
No code needed, just head for checkout!
Simplex 4098-9793 TrueAlarm IDNet Isolator Sensor Base provides Simplex TrueAlarm analog sensor operation and also provides IDNet communications isolation to improve installation convenience and increase system integrity. Isolation is automatically activated at the base when an output short circuit is detected and isolation can also be selected per base manually from the control panel to assist with troubleshooting wiring problems.
Features
- When panel mounted quad isolation is also required for 4100ES and 4010ES panels, use IDNet+ Modules (see diagram notes and individual panel data sheets)
- Compatible with: Simplex fire alarm control panel models 4100ES, 4010ES, 4008, 4010, and 4100U
- Can be installed up to 250 total allowing isolation directly to the device level (200 total with 4008)
- UL listed to Standard 268; ULC listed to Standard S529
- Base mounted LED indicates sensor status
- Designed for EMI compatibility
Specifications
- Product: Isolator Sensor Base
- Brand: Simplex
- Model: 4098-9793
- Power and Communications: IDNet communications, one address per base
- Distance Specification: Maximum line resistance between panel and isolator, or between isolators is 10 ohms; [18 AWG (0.82 mm2 ) = 780 ft (238 m)]
- IDNet Connections: Screw terminals for in/out wiring, 18 to 14 AWG (0.82 to 2.08 mm2 )
- Housing Color: Frost white
- UL Listed Temperature Range: 32° F to 100° F (0° C to 38° C)
- Operating Temperature Range: 15° F to 122° F (-9° C to 50° C)
- Humidity Range: 10 to 95% RH, from 32° F to 122° F (0° C to 50° C)
