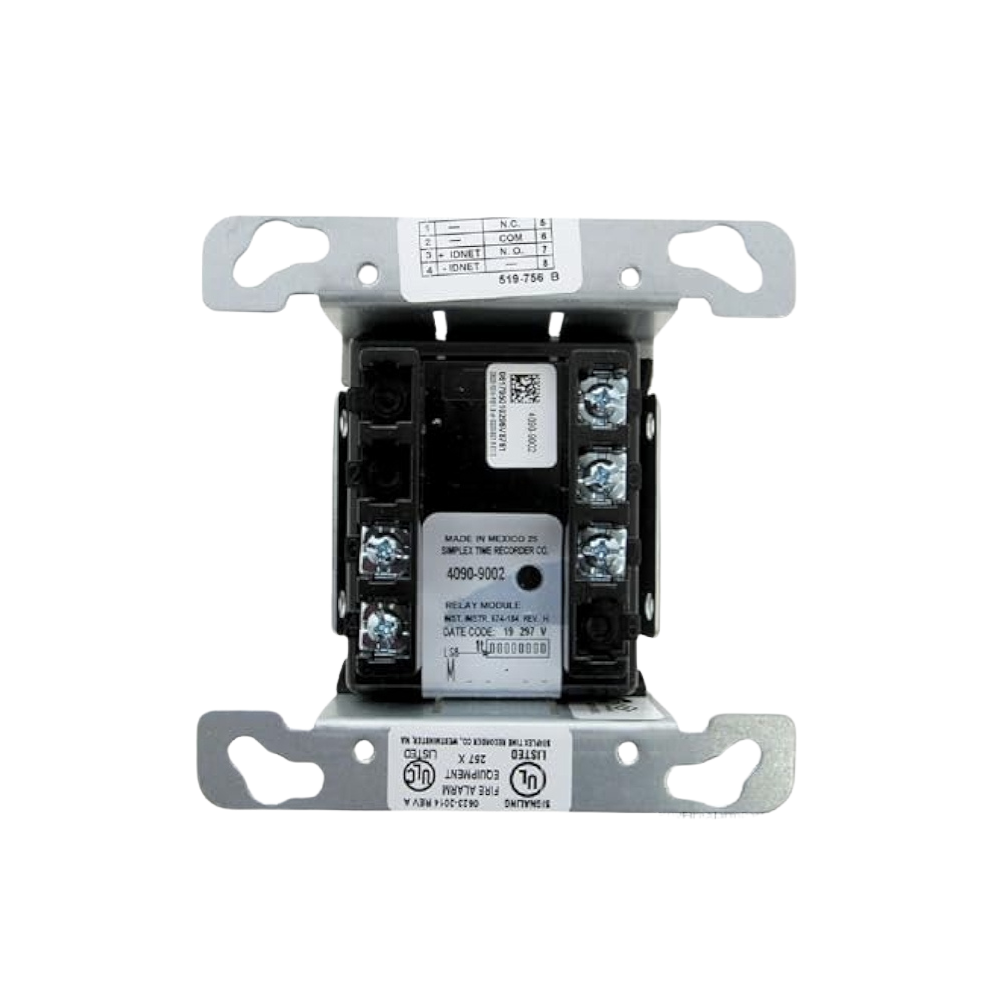

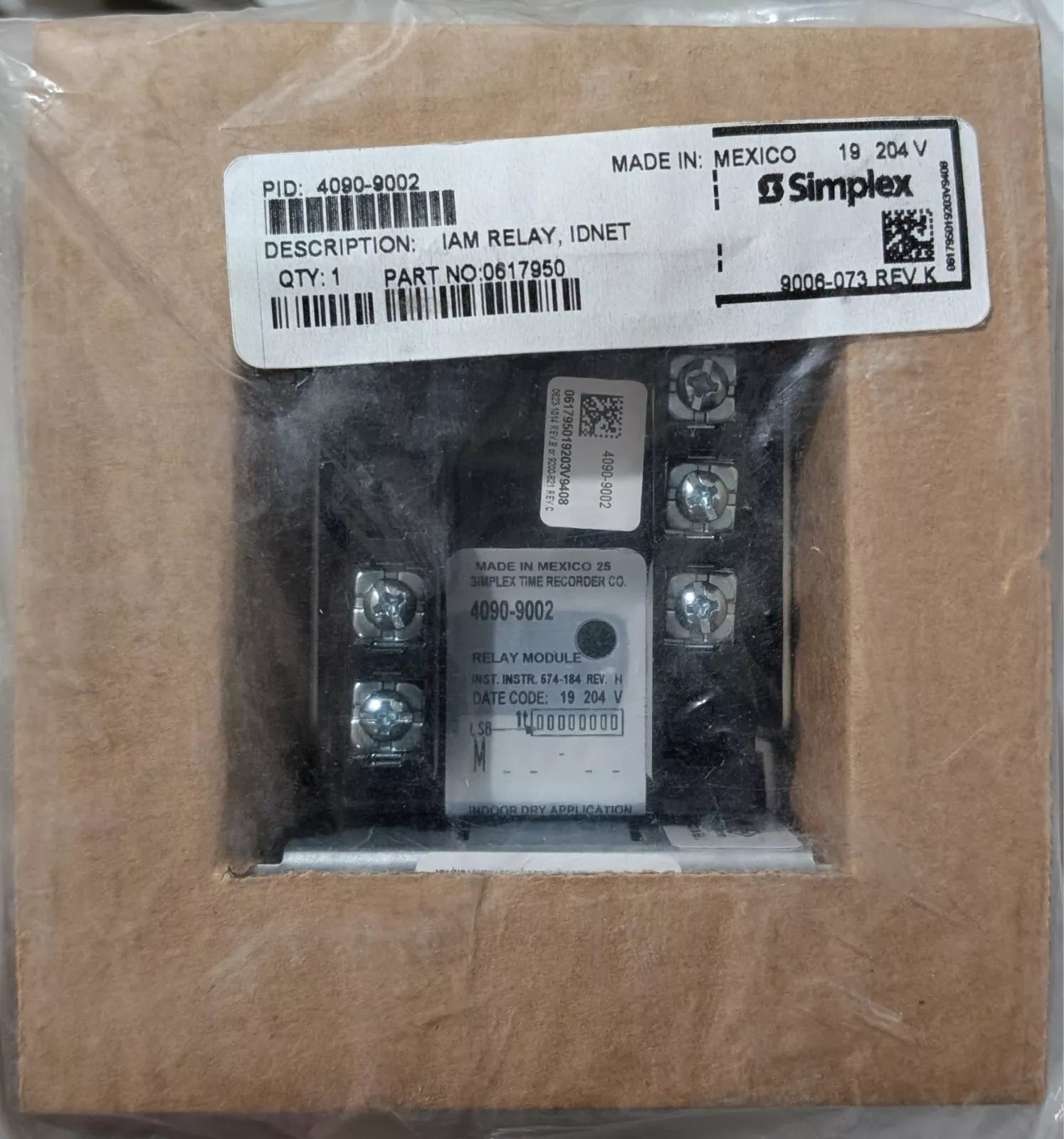

Simplex 4090-9002 IDNet Relay IAM

The 4090-9002 Relay IAM allows the control and indicating equipment to control a remotely located Form “C” Relay contact using IDNet addressable communications for both data and module power. The address is set by DIP switch under the resealable label.

Designed for use with Simplex 4100U Control and Indicating Equipment.

Features

• IDNet addressable control for use with Simplex fire alarm control panel models 4007ES, 4008, 4010, 4010ES, 4100ES, and 4100U
• A single addressable point provides control and status tracking of a Form C1/2 contact
• Low power latching relay design allows IDNet communications to supply both data and module power
• Relay is set to OFF on initial power up and upon loss of IDNet communications
