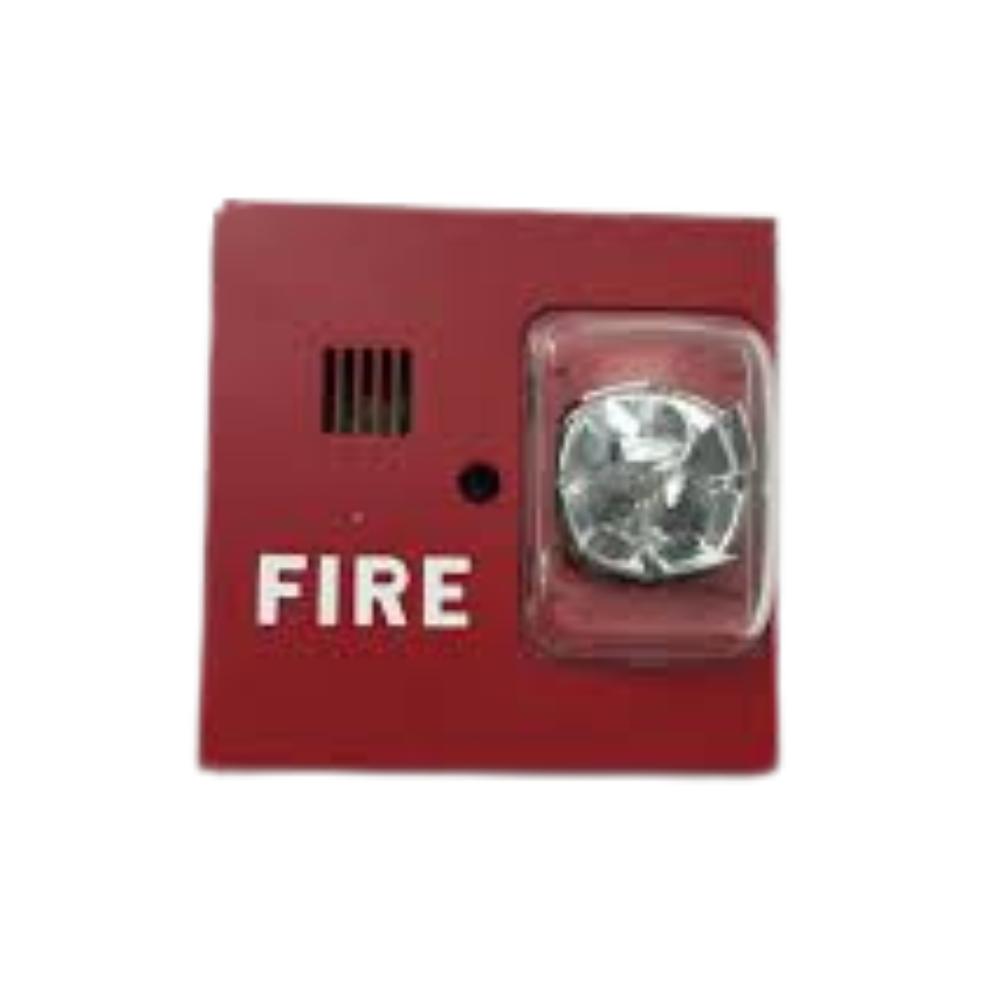

Siemens U-MHST-MCS Fire Alarm Horn/Strobe

All models of the U-MH series & Siemens U-MHT-MCS Series horns and horn/strobes provide a continuous or coded horn signal, depending on the pattern of the voltage applied. Also, the Adapter feature offers four field selectable candela settings – 15/75, 30/75, 75, or 110. Besides, the Siemens U-MHT-MCS has a universal mounting plate to mount on a single gang, double gang, or 4″ square back box.

In general, Siemens Fire Safety notification devices come designed with the installer in mind. Furthermore, they are constructed with all of the electronics inside the housing and not in the box. This design helps eliminate possible ground faults from crowded electrical boxes. In addition, the strobe construction consists of a Xenon flash tube with solid state circuitry for maximum reliability and efficiency. The full range of strobes has a rounded dome shape made of clear Polycarbonate.

Features / Specifications

• The Adapter feature offers four field selectable candela strobe values – 15/75, 30/75, 75 or 110
• Strobe only operates in either sync or non-sync modes
• Steady-tone or temporal horn (92 dB @ 10 ft. typical) with 15 mA horn current
• Single gang and universal mount configurations
• Screw terminals accept 12 AWG wire
• Strobe synchronization requires the Dual Sync Control Module or PAD 3
