- Sku: FA-351

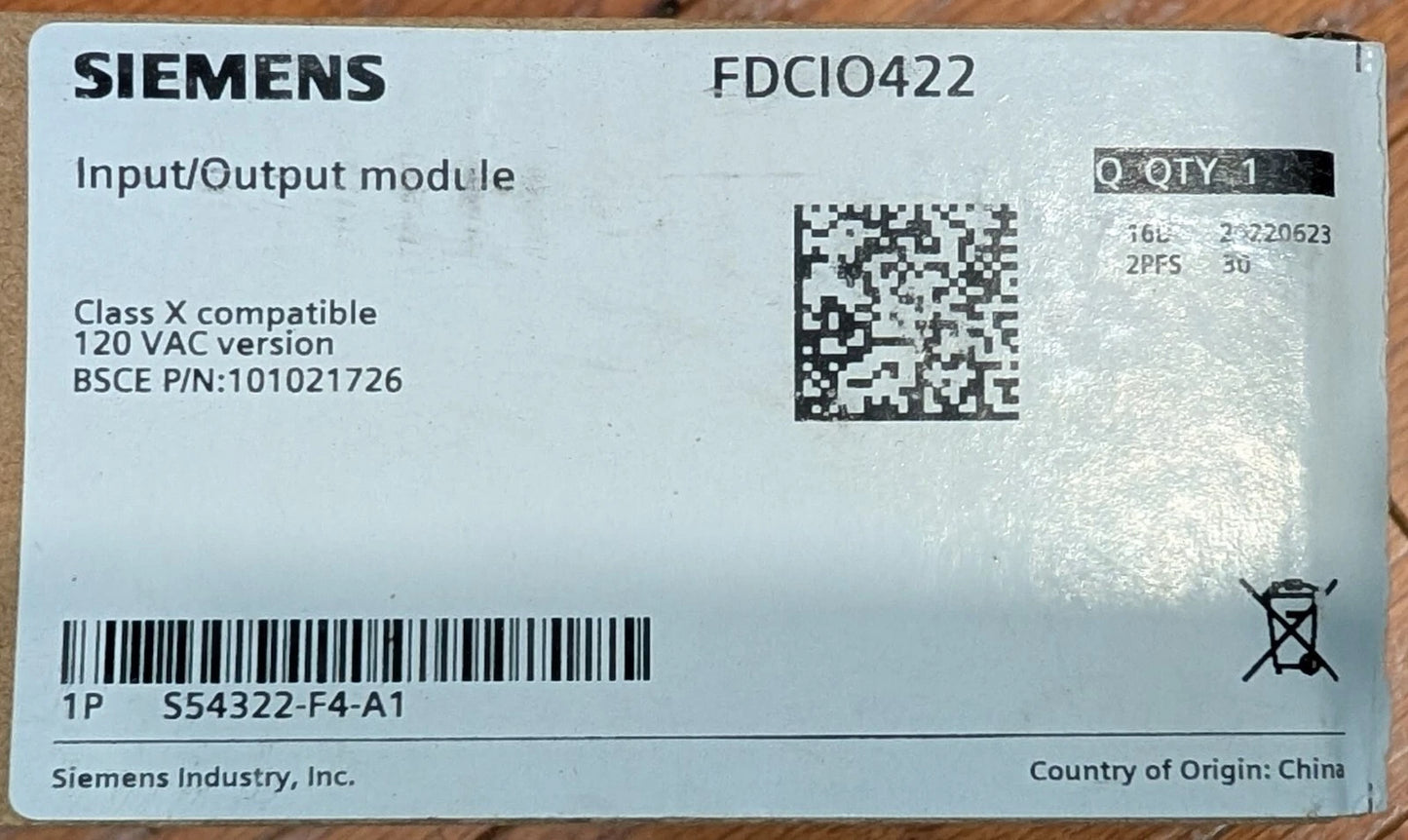

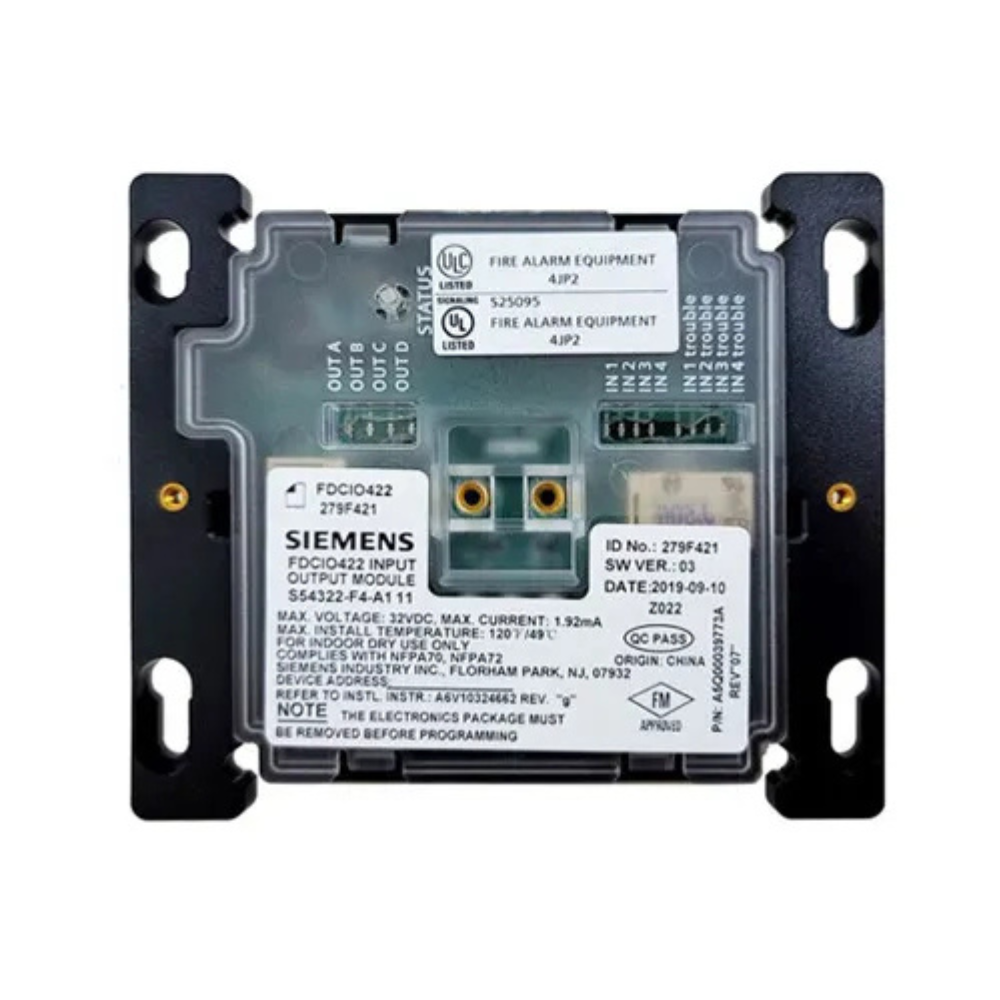

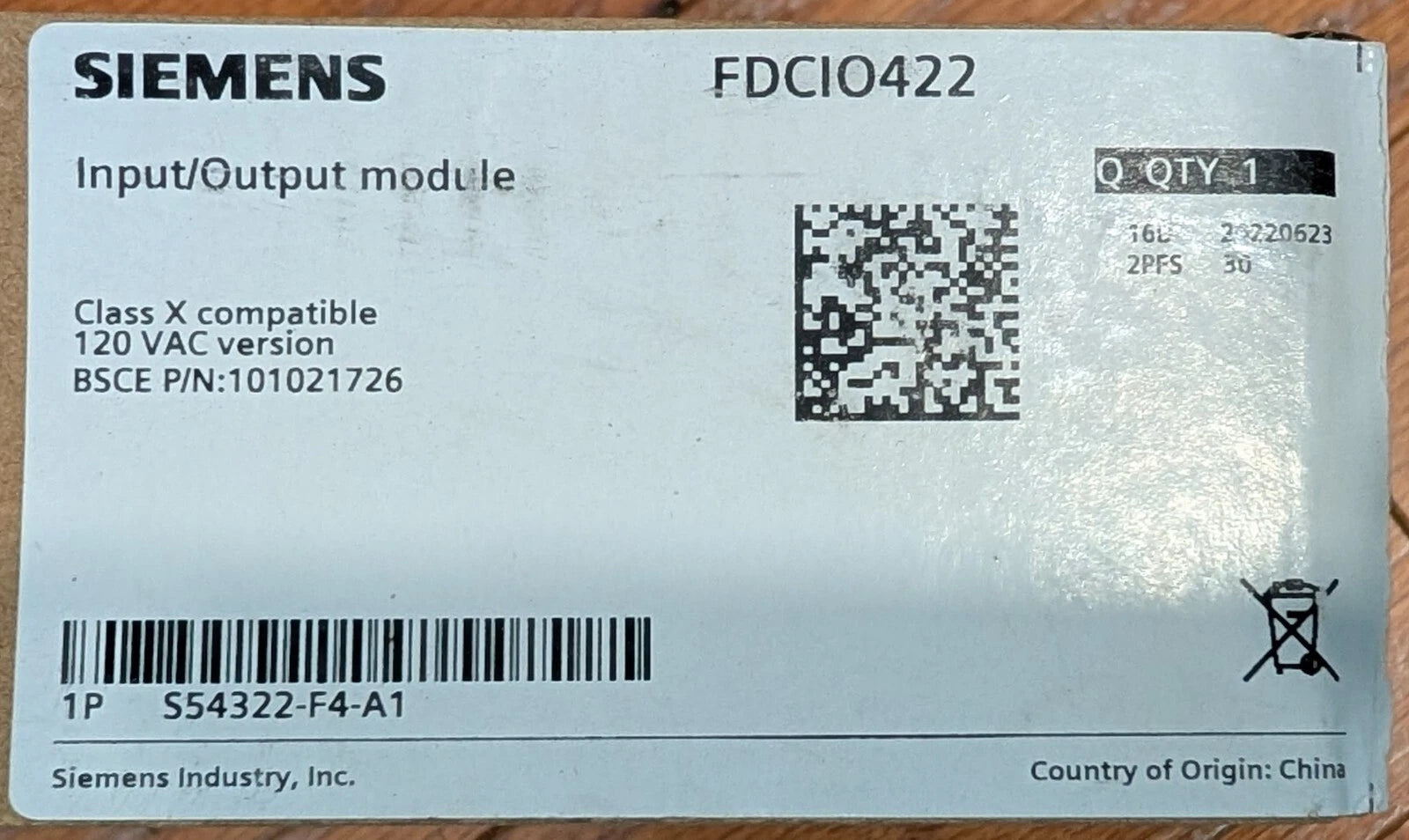

Siemens FDCIO422 Addressable I/O Input/Output Module
$49.99
Tax included.
Just 1 left. Order soon!
FREE SHIPPING
No code needed, just head for checkout!
The four (4) input / (4) output interface module (Model FDCIO422) from Siemens ─ Fire Safety is designed to provide the means of interfacing direct shorting devices to the Device Loop Card (Model DLC), as well as the Desigo Fire Safety fire-alarm control panels (FACPs).
Features
- Inputs can be independently configured via the fire control panel for alarm, trouble, status or supervisory zones.
- The FDCIO422 has 4 programmable outputs with 4 potential-free latching type form A relay contacts for fire control installations.
- Status indication per LED for each input and output plus 1 LED for general status of the device. Power supply via FDnet (supervised power limited).
- Including 4 EOL devices (470 +) - 3 separators to separate the power limited wiring from the non-power limited.
- Separators are delivered in 3 different sizes for standard 4 11/16- inch box, 4 11/16-inch extension ring and 5-inch box (RANDL).
