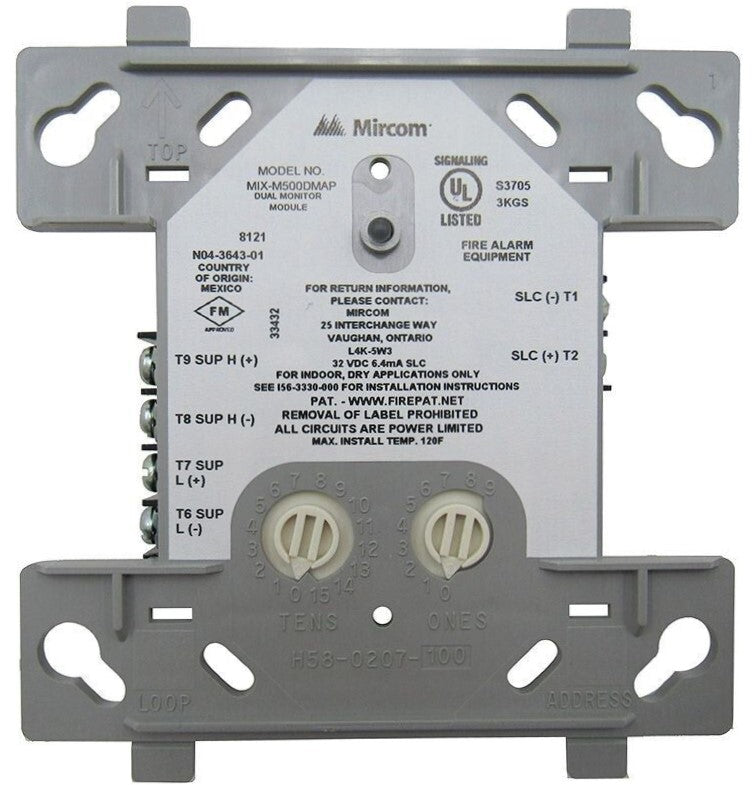

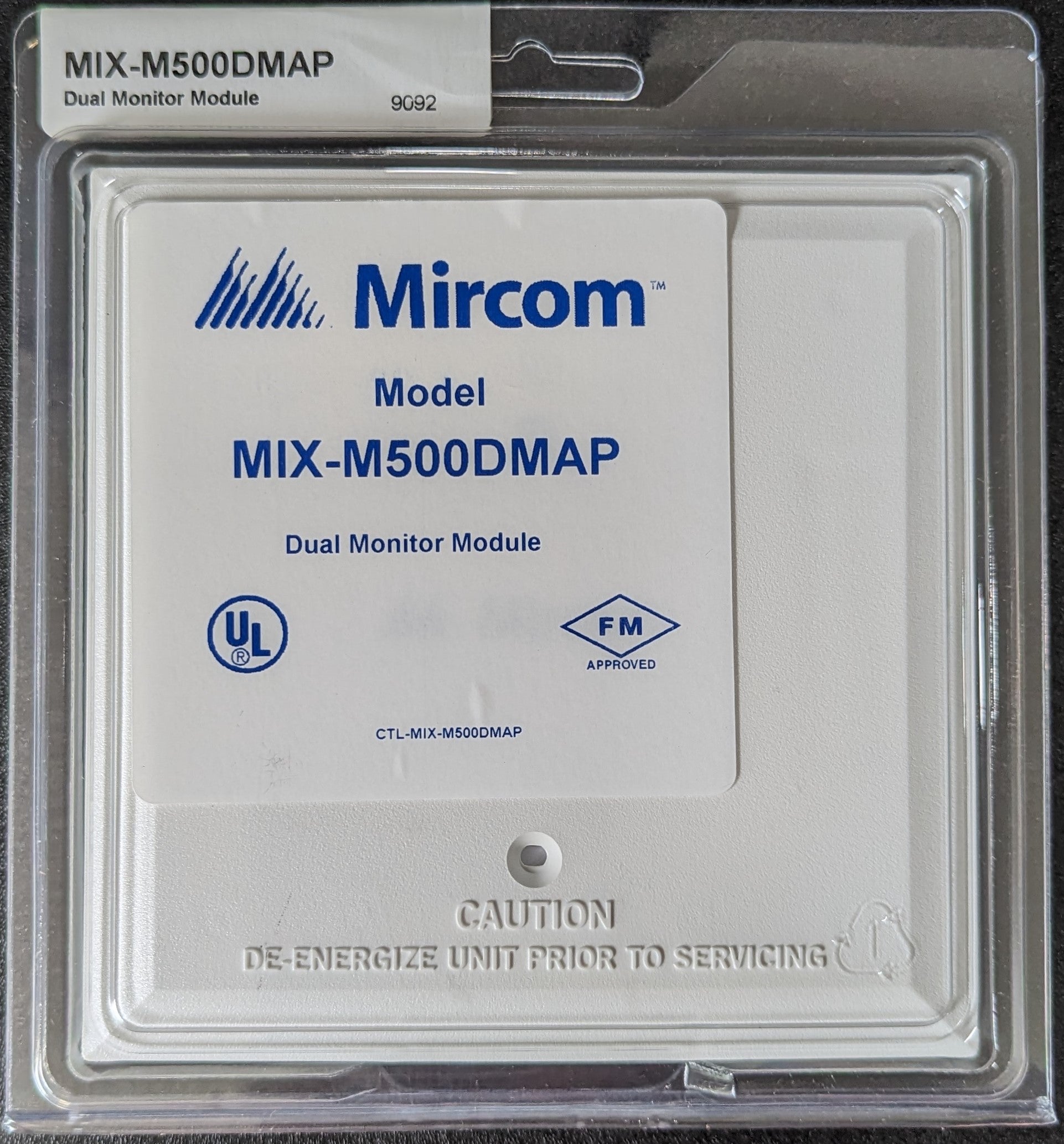

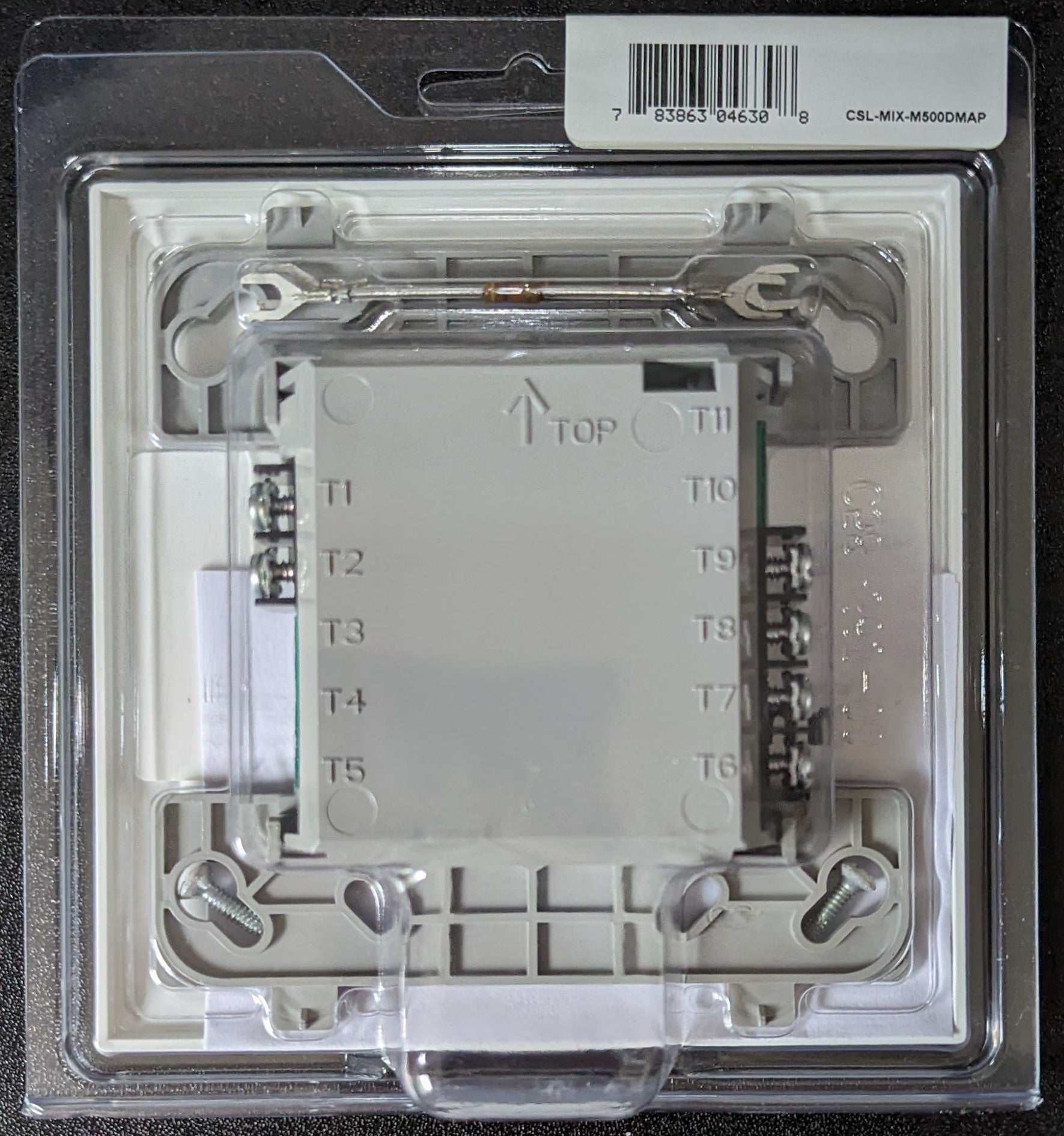

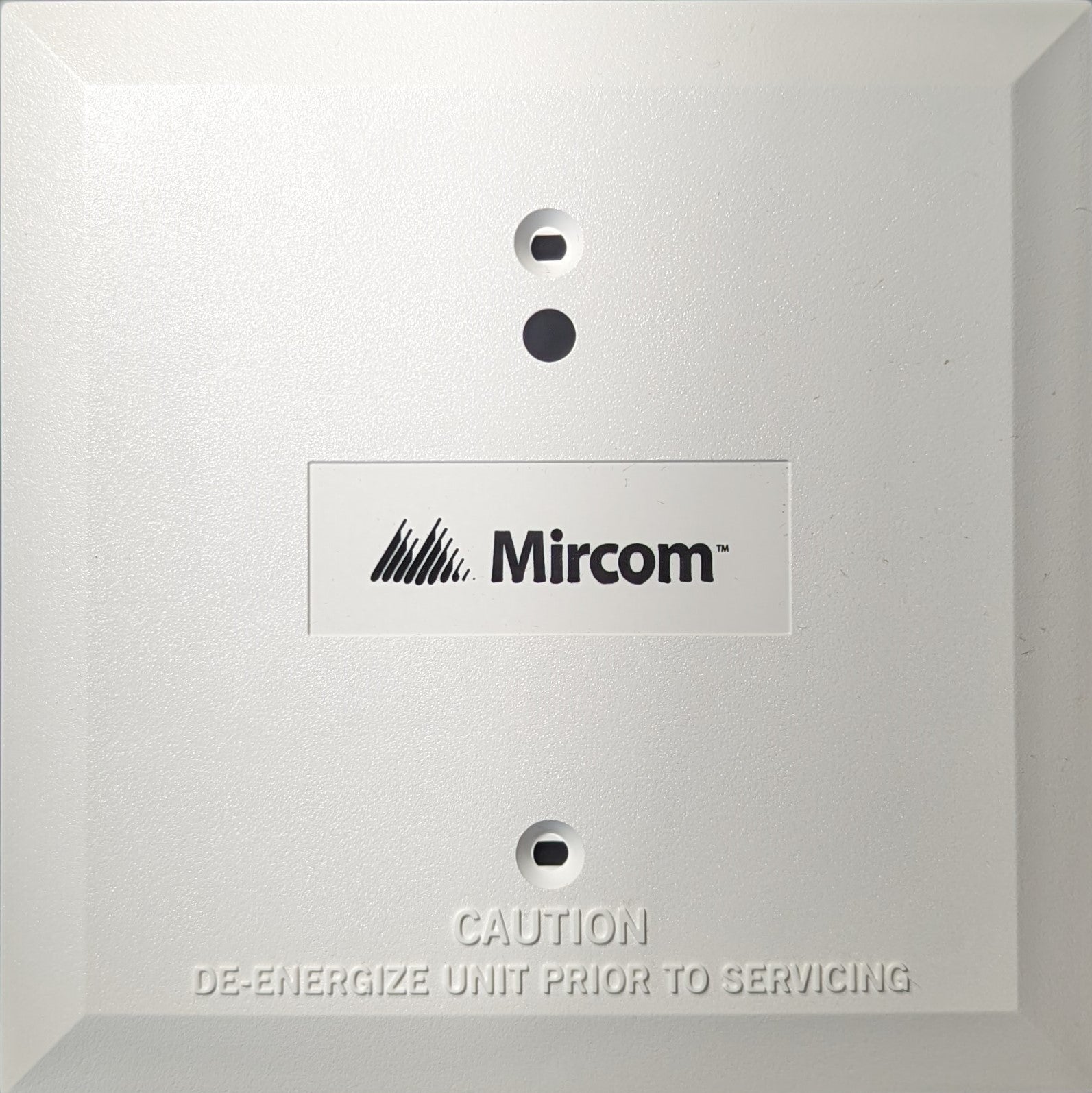

Mircom MIX-M500DMAP Monitor Module

The Dual Monitor Module is intended for use in intelligent, two wire systems. It provides two independent 2-wire initiating device circuits (IDC), at two separate, consecutive addresses. It is capable of monitoring normally open contact fire alarm and supervisory devices, or either normally open or normally closed security devices.

The MIX-M500DMAP module connects to the SLC of a compatible fire alarm control panel. Mounts directly to 4-inch square electrical boxes. The box must have a minimum depth of 2 1/8 inches.
