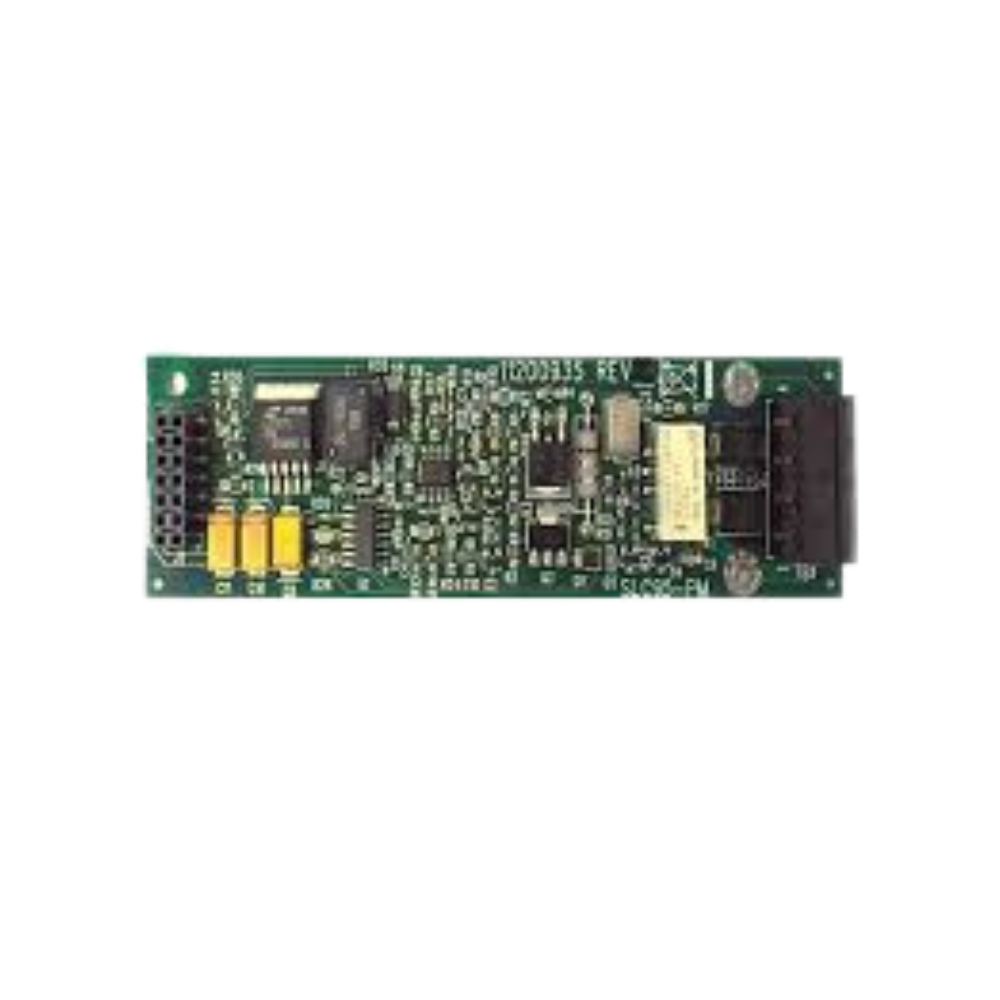

Honeywell Gamewell SLC95-PM Module

The Gamewell-FCI®, S3 Series (Small Addressable Fire Alarm Control Panel) signaling line circuits (SLCs) provide the communication between the S3 Series fire alarm control panel and the SLC devices. Each SLP-E3 (Smart Loop Panel) main board supports either one or two of the following plug-in SLC-Personality Modules.

Features

• SLC-PM (Signaling Line Circuit Personality Module)
• SLC95-PM (Signaling Line Circuit-95-Personality Module)

The SLC-PM/SLC95-PM modules provide one SLC loop in Class B or Class A wiring.

The SLC-PM supports the following devices:

• Up to 318 System Sensor Velociti® devices.
- 159 sensors and 159 modules

• Up to 198 System Sensor CLIP devices.
- 99 sensors and 99 modules

The SLC95-PM supports the following devices:

• Up to 126 Apollo XP95 devices.
- 126 sensors and modules

Installation

The SLC-PM/SLC95-PM modules are designed to be plugged into the Smart Loop
Panel-Main Board (SLP-E3). This feature allows you to expand the S3 Series (Small
Addressable Fire Alarm Control System without the need to remove or replace
hardware.
