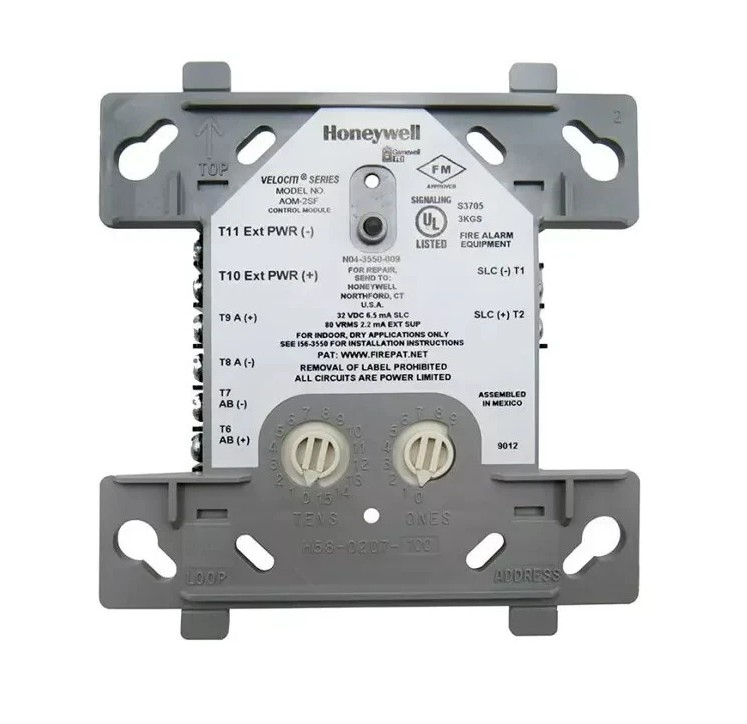

Honeywell Gamewell AOM-2SF Addressable Relay Supervised Control Module

Addressable output supervised control modules allow a Gamewell-FCI® analog addressable fire alarm control panel (FACP) to switch an external power supply, such as a DC supply or audio amplifier (up to 80 Vrms), to notification appliances. Addressable output supervised control modules' notification appliance circuit (NAC) can be wired either Class A (Style Z) or Class B (Style Y). They also supervise the wiring to the connected loads and report their status to the panel as normal, open, or short circuit. The modules contain a panel-controlled LED.

Addressable output supervised control modules are designed for installation in the signaling line circuit of any Gamewell-FCI analog addressable FACP. The signaling line circuits of Gamewell-FCI analog addressable FACPs are designed to accommodate up to 159 modules per circuit. Addressable output supervised control modules are designed to mount in a 4-inch (10.16 cm) square junction box.
