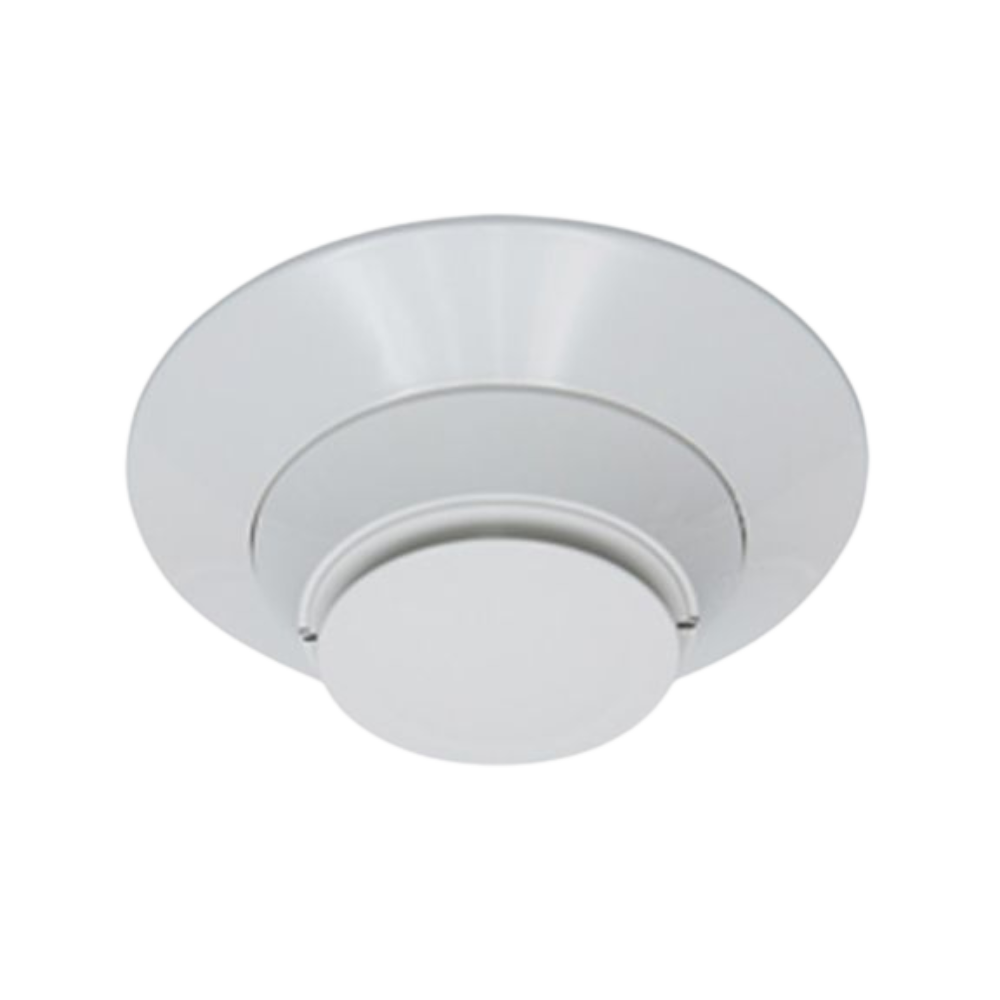

ASD-PL3 intelligent photoelectric smoke sensors are plug-in smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications. The sensors transmit an analog representation of smoke density over communication lines to control panels. Rotary dial switches are provided for setting the sensor’s address.
Features
- Modern profile for improved aesthetics
- Visual rotary, decimal switch addressing (01 to 159)
- Built-in functional test switch activated by an external magnet
- Dual bi-color LEDs flash green whenever the sensor is addressed and turn a steady red during an alarm
- Optional relay, isolator, or sounder bases
- Low standby current
- Analog addressable communication
- Stable communication technique with noise immunity
- Optional remote, single-gang LED indicator (RA100Z)
- Compatible with Gamewell-FCI® analog addressable panels
Certifications
- UL 268
- UL268A
- NFPA
