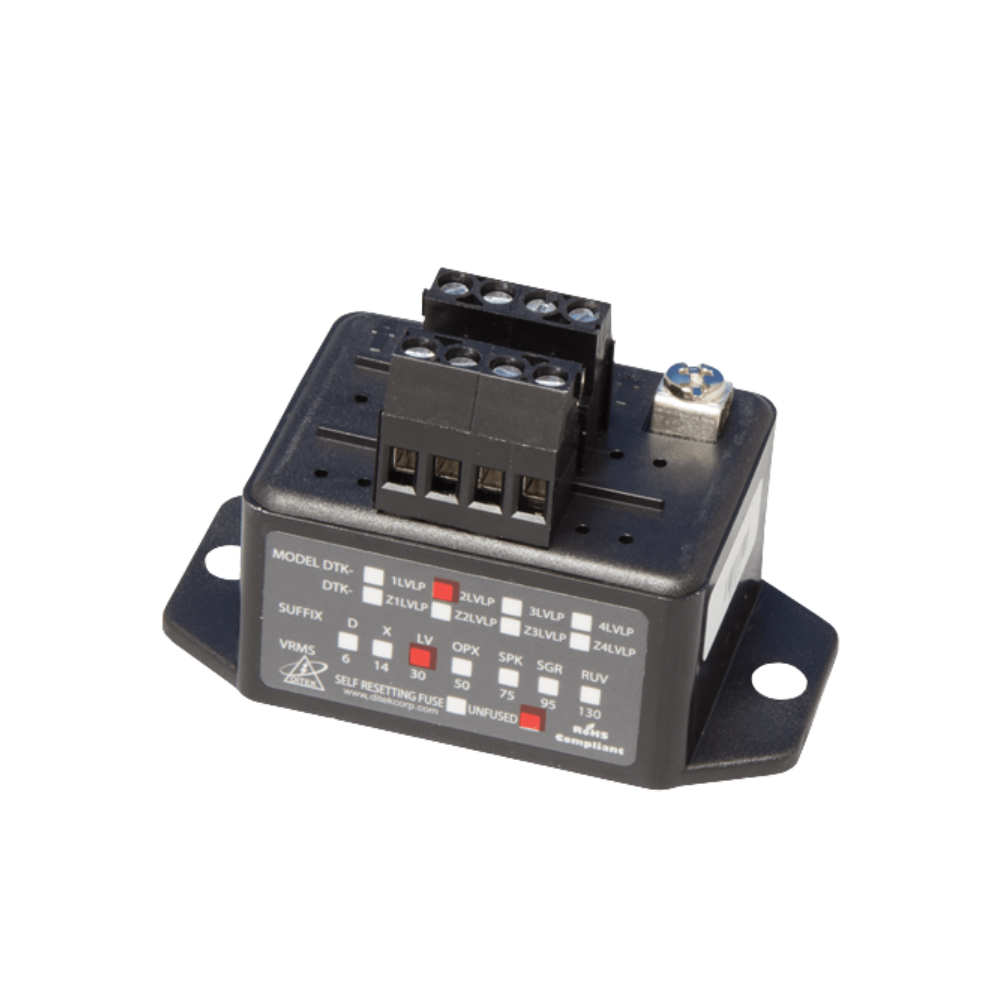

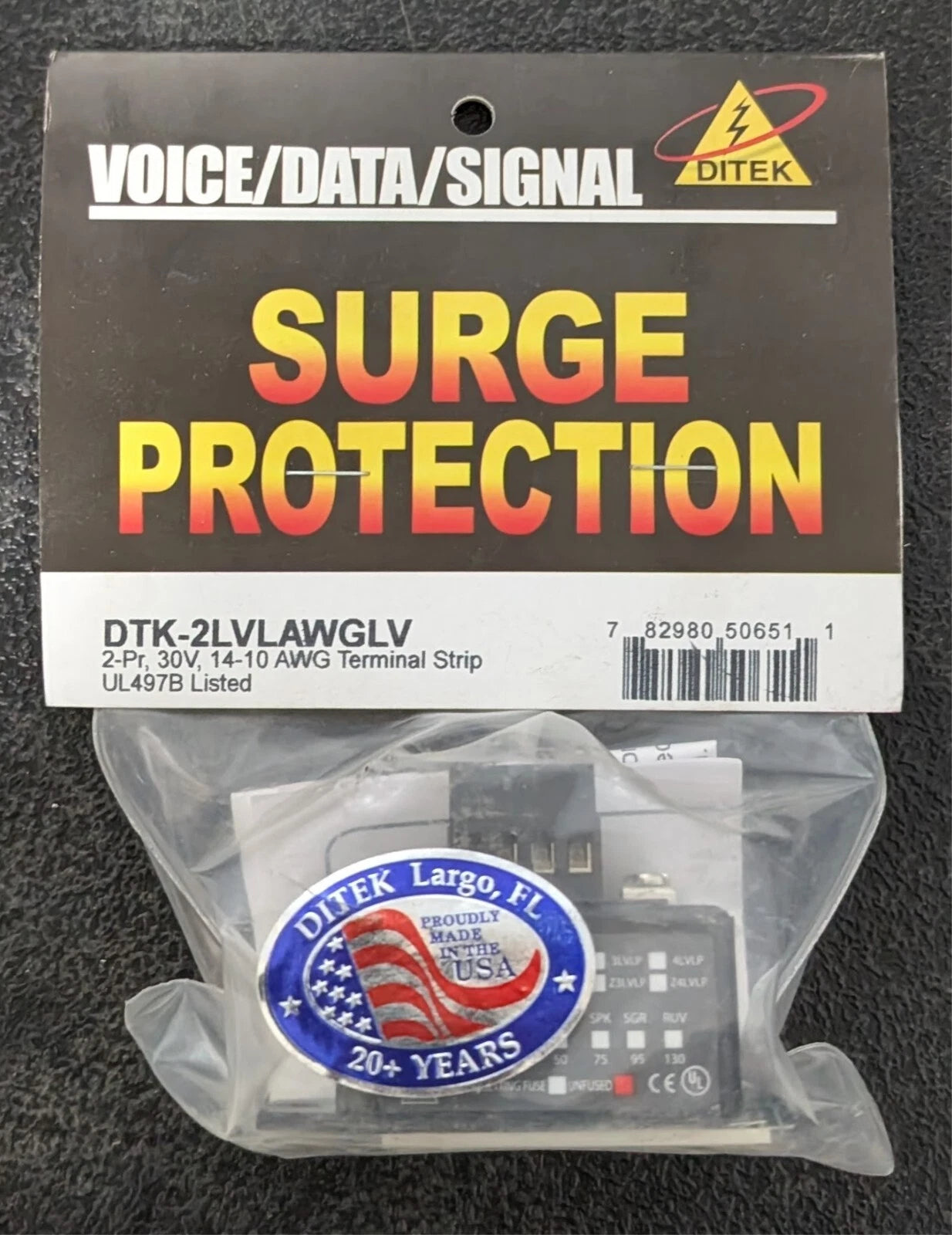

DITEK DTK-2LVLAWGLV Surge Protector

The Ditek DTK-2LVLAWGLV Series of low-voltage surge protectors provide robust protection in a compact, hardwired package. Models are available to protect multiple low voltage pairs, and are suitable for both AC and DC circuits. Ditek 2LVLAWGLV models can handle up to 10 AWG wiring connections.

Features / Specifications

• Protect up to (4) pairs per module to match your specific configuration needs
• Series connection, parallel function adds no resistance to loop circuits
• Five voltage levels available to protect various low-voltage applications
• “SCP” models provide an automatic resetting fuse and sneak current protection
• Operating Temperature: -40°F – 158°F (-40°C – 70°C)
• Maximum Humidity: 95% non-condensing
• Dimensions: 3.0” L x 1.6“ W x 1.6“ H (7 6mm x 41 mm x 4 1mm)
• Weight: 2.4 oz (68 g)
