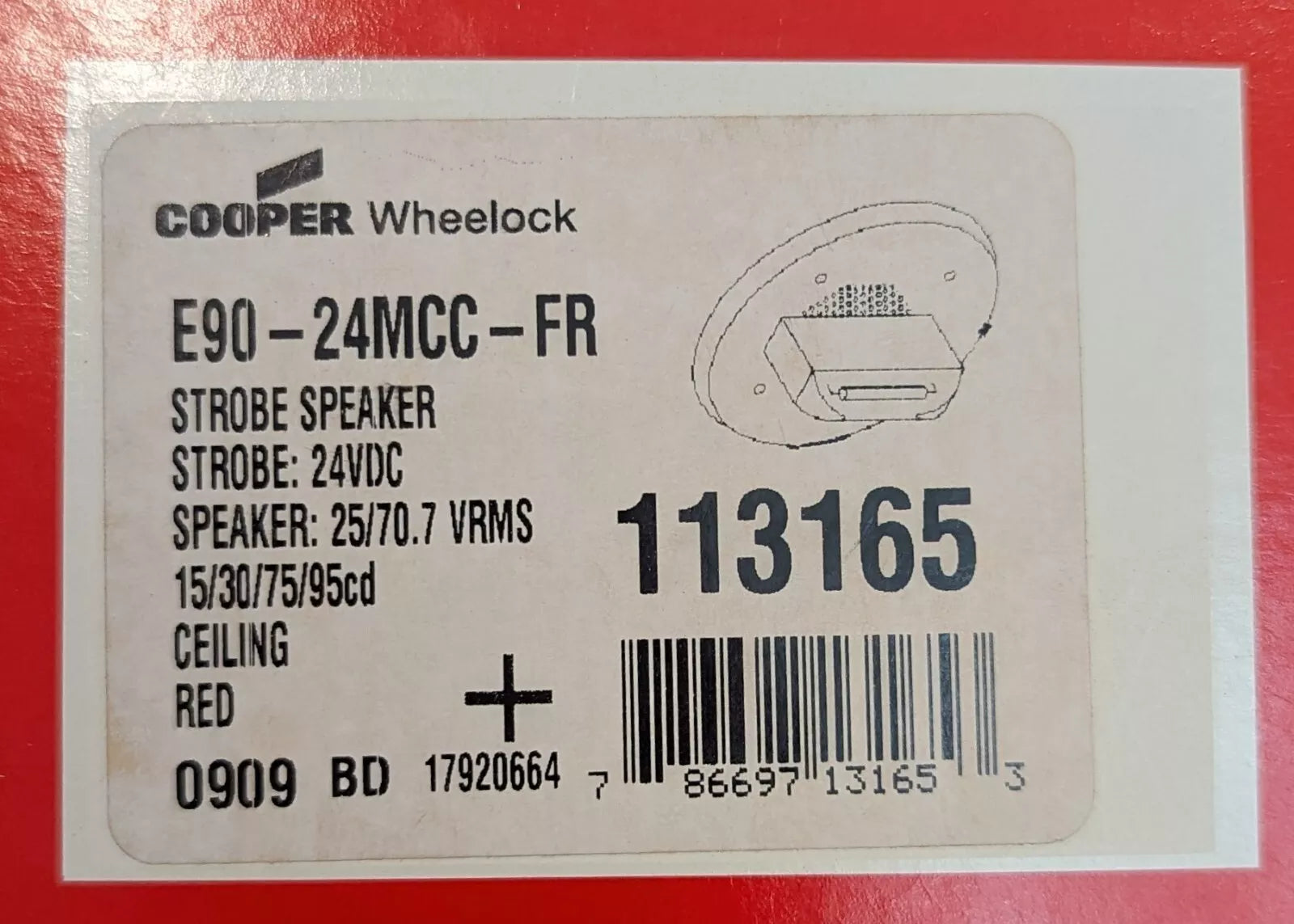

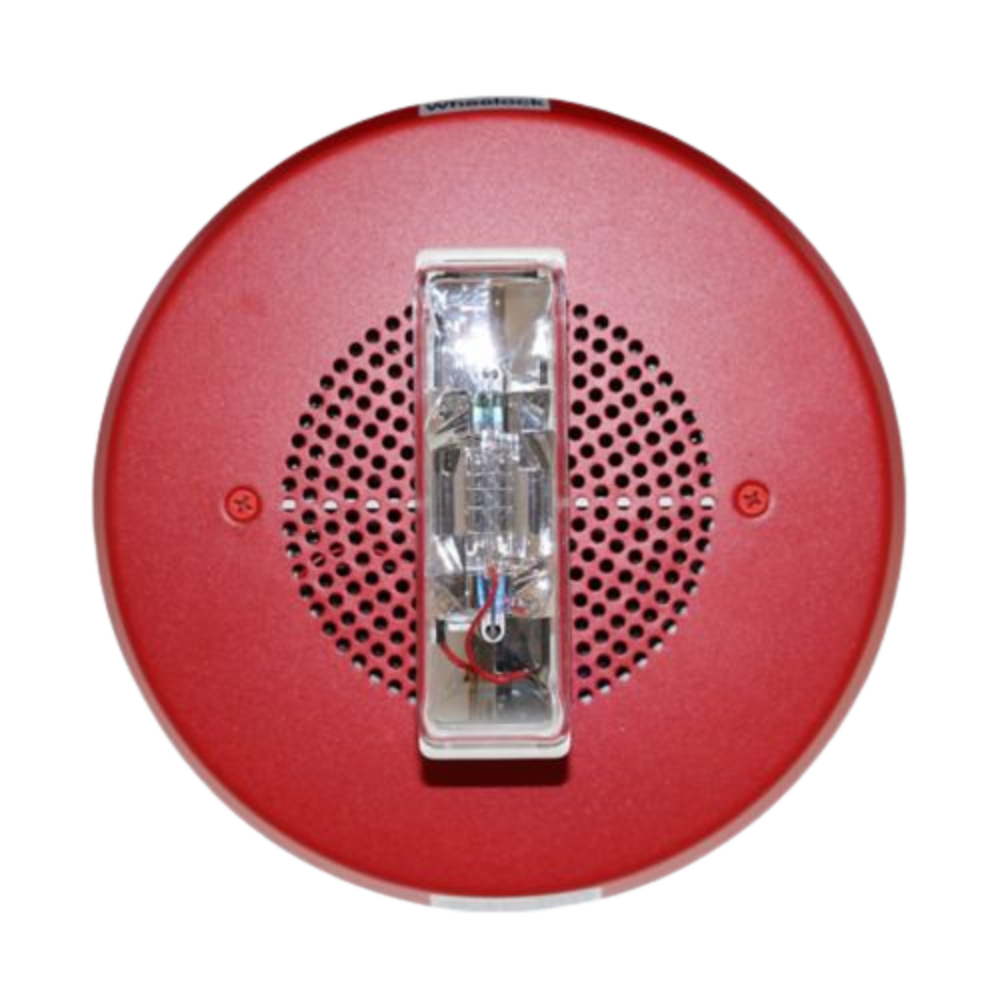

Cooper Wheelock E90-24MCC-FR Speaker Strobe - Red

The Wheelock Series E Low Profile Speakers and Speaker Strobes are designed for high efficiency sound output, with dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. The low profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover.

The Series E Speaker Strobe models incorporate the Low Current draw Series RSS Strobes. Strobe options for wall mount models include 1575 or Wheelock patented MCW multi-candela strobe with field selectable candela settings of 15/30/75/110cd or the high intensity MCWH strobe with field selectable 135/185cd.

Ceiling mount models are available in Wheelock patented MCC multi-candela ceiling strobe with field selectable intensities of 15/30/75/95cd or 115/177cd.

Specifications

• Depth: 2.7"
• Power Source: DC Supply
• Limited Warranty: 3 Year
• Product Functions: Alarm
• Product Line: Wheelock
• Product Series: E90
• Product Type: Speaker Strobe
• Weight (Approximate) (g): 725.748
• Alarm Type: Audible, Visual
• Connectivity Technology: Wired
• Application/Usage: Indoor, Mass Notification, Voice Evacuation
• Durability: UV Resistant
• Form Factor: Ceiling Mountable
• Product Color: Red
• Weight (Approximate): 1.60 lb
• Input Voltage (V DC): 33
• Input Voltage: 33 V DC
• Depth (mm): 68.072
